True BASIC Program to Find a Function Minimum

Using Marquardt's Method

by Namir Shammas

The following program uses the Marquardt method to find the minimum of a function.

The program prompts you to enter for each variable (i.e. dimension):

1. The gradient norm tolerance.

2. The maximum number of iterations.

3. The Alpha factor (a large value like 1E+4 is suitable).

4. The value for C1 and C2 factors (values for C1 = 0.1 and C2 = 10 are generally adequate)

5. The initial guesses for the optimum point for each variable.

6. The tolerance values for each variable.

The program displays the following final results:

1. The coordinates of the minimum point.

2. The minimum function value.

3. The number of iterations

The current code finds the minimum for the following function:

f(x1,x2) = x1 - x2 + 2 * x1 ^ 2 + 2 * x1 * x2 + x2 ^ 2

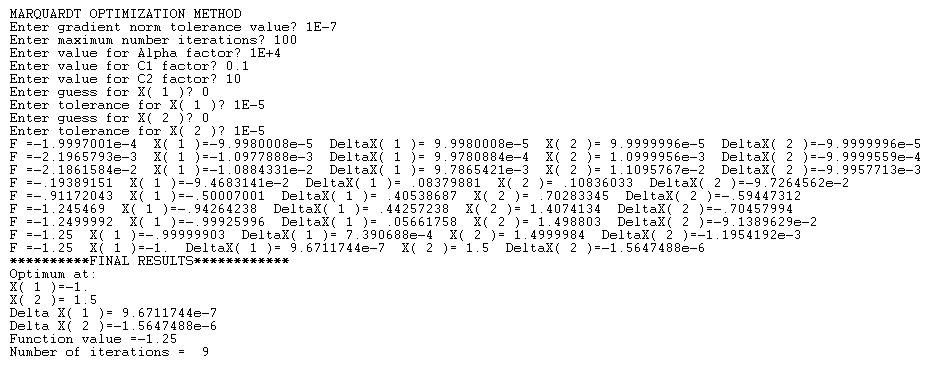

Here is a sample session to solve for the optimum of the above function:

Here is the BASIC listing:

! Marquardt's Method for Optimization

OPTION TYPO
OPTION NOLET

DECLARE NUMERIC MAX_VARS, ALPHA_MAX
DECLARE NUMERIC N, I, F1, F2, Lambda, Alpha, C1, C2
DECLARE NUMERIC EPSF, fNorm
DECLARE NUMERIC Iter, MaxIter, InnerLoopIter
DECLARE NUMERIC bStop, bOK, bTrue, bFalse, bStop2

Dim X(1), X2(1), g(1,1)
Dim Toler(1)
Dim DeltaX(1), J(1, 1)
Dim Iden(1,1), Iden2(1,1)

MAX_VARS = 2
bTrue = 1
bFalse = 0
ALPHA_MAX = 1E+100

SUB MyFx(X(), N, Res)
  !Res = 100 * (X(1) ^ 2 - X(2)) ^ 2 + (1 - X(1)) ^ 2
  Res = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2
END SUB

SUB MyFxEx(N,X(),DeltaX(), Lambda, funRes)
  LOCAL  I
  Dim XX(1)
  MAT REDIM XX(N)

  For I = 1 To N
    XX(I) = X(I) + Lambda * DeltaX(I)
  Next I

  CALL MyFx(XX, N, funRes)
END SUB

SUB LinSearch_DirectSearch(X(), N, Lambda, DeltaX(), boolRes)
  LOCAL MAX_ITER, TOLER
  LOCAL Iter, h, Diff, F0, Fp, Fm, Deriv1, Deriv2

  MAX_ITER = 100
  TOLER = 0.000001
  boolRes = bTrue

  Iter = 0
  Do
    Iter = Iter + 1
    If Iter > MAX_ITER Then
      boolRes = bFalse
      Exit SUB
    End If
    h = 0.01 * (1 + Abs(Lambda))
    CALL MyFxEx(N, X, DeltaX, Lambda, F0)
    CALL MyFxEx(N, X, DeltaX, Lambda + h, Fp)
    CALL MyFxEx(N, X, DeltaX, Lambda - h, Fm)
    Deriv1 = (Fp - Fm) / 2 / h
    Deriv2 = (Fp - 2 * F0 + Fm) / h ^ 2
    If Deriv2 = 0 Then Exit SUB
    Diff = Deriv1 / Deriv2
    Lambda = Lambda - Diff
  Loop Until Abs(Diff) < TOLER



END SUB


SUB FirstDeriv(N, X(), iVar, funRes)
  LOCAL Xt, h, Fp, Fm

  Xt = X(iVar)
  h = 0.01 * (1 + Abs(Xt))
  X(iVar) = Xt + h
  CALL MyFx(X, N, Fp)
  X(iVar) = Xt - h
  CALL MyFx(X, N, Fm)
  X(iVar) = Xt
  funRes = (Fp - Fm) / 2 / h
END SUB

SUB SecondDeriv(N, X(), iVar, jVar, funRes)
  LOCAL Xt, Yt,HX, HY,F0, Fp, Fm
  LOCAL Fpp, Fmm, Fpm, Fmp

  ! calculate second derivative?
  If iVar = jVar Then
    CALL MyFx(X, N, F0)
    Xt = X(iVar)
    HX = 0.01 * (1 + Abs(Xt))
    X(iVar) = Xt + HX
    CALL MyFx(X, N, Fp)
    X(iVar) = Xt - HX
    CALL MyFx(X, N, Fm)
    X(iVar) = Xt
    funRes = (Fp - 2 * F0 + Fm) / HX ^ 2
  Else
    Xt = X(iVar)
    Yt = X(jVar)
    HX = 0.01 * (1 + Abs(Xt))
    HY = 0.01 * (1 + Abs(Yt))
    ! calculate Fpp
    X(iVar) = Xt + HX
    X(jVar) = Yt + HY
    CALL MyFx(X, N, Fpp)
    ! calculate Fmm
    X(iVar) = Xt - HX
    X(jVar) = Yt - HY
    CALL MyFx(X, N, Fmm)
    ! calculate Fpm
    X(iVar) = Xt + HX
    X(jVar) = Yt - HY
    CALL MyFx(X, N, Fpm)
    ! calculate Fmp
    X(iVar) = Xt - HX
    X(jVar) = Yt + HY
    CALL MyFx(X, N, Fmp)
    X(iVar) = Xt
    X(jVar) = Yt
    funRes = (Fpp - Fmp - Fpm + Fmm) / (4 * HX * HY)
  End If
END SUB


SUB GetFirstDerives(N, X(), FirstDerivX(,))

  LOCAL I

  For I = 1 To N
    CALL FirstDeriv(N, X, I, FirstDerivX(I,1))
  Next I
END SUB

SUB GetSecondDerives(N, X(), SecondDerivX(,))

  LOCAL I, J


  For I = 1 To N
    For J = 1 To N
      CALL SecondDeriv(N, X, I, J, SecondDerivX(I, J))
    Next J
  Next I
END SUB

! Marquardt's Method for Optimization

N = MAX_VARS

MAT REDIM X(N), X2(N), g(N,1)
MAT REDIM Toler(N)
MAT REDIM DeltaX(N), J(N, N)
MAT REDIM Iden(N,N), Iden2(N,N)

PRINT "MARQUARDT OPTIMIZATION METHOD"
INPUT PROMPT "Enter gradient norm tolerance value? ": EPSF
INPUT PROMPT "Enter maximum number iterations? ": MaxIter
INPUT PROMPT "Enter value for Alpha factror? ": Alpha
INPUT PROMPT "Enter value for C1 factror? ": C1
INPUT PROMPT "Enter value for C2 factror? ": C2
For I = 1 To N
  PRINT "Enter guess for X(";I;")";
  INPUT X(I)
  PRINT "Enter tolerance for X(";I;")";
  INPUT Toler(I)
Next I

CALL MyFx(X, N, F2)

Iter = 0
Do
  Iter = Iter + 1
  If Iter > MaxIter Then
    PRINT "Reached maximum iterations limit"
    Exit Do
  End If

  ! copy last Fx value
  F1 = F2

  CALL GetFirstDerives(N, X, g)

  ! test if gradient is shallow enough
  fNorm = 0
  For I = 1 To N
    fNorm = fNorm + g(I,1)^2
  Next I
  fNorm = Sqr(fNorm)
  If fNorm < EPSF Then Exit Do

  ! copy vector X
  MAT X2 = X
  ! get matrix J
  CALL GetSecondDerives(N, X, J)
  ! create identitty matrix
  MAT Iden = IDN(N,N)
  ! Initializer inner loop
  InnerLoopIter = 0

  Do
    InnerLoopIter = InnerLoopIter + 1
    If InnerLoopIter > MaxIter Then Exit Do

    MAT Iden2 = Alpha * Iden
    MAT J = J + Iden2
    MAT J = INV(J)
    MAT g = J * g

    For I = 1 To N
      DeltaX(I) = g(I,1)
      X(I) = X(I) - DeltaX(I)
    Next I

    CALL MyFx(X, N, F2)

    PRINT "F =";F2;" ";
    For I = 1 To N
      PRINT "X(";I;")=";X(I);" DeltaX(";I;")=";DeltaX(I);" ";
    Next I
    PRINT

    If F2 < F1 Then
      Alpha = C1 * Alpha
      bStop = bTrue
    Else
      Alpha = C2 * Alpha
      MAT X = X2 ! objML.DuplicateVector X2, X ' restore array X
      bStop = bFalse
      If Alpha >= ALPHA_MAX Then
        PRINT "**********SOLUTION FAILES************"
      End If
    End If

    bStop2 = bTrue
    For I = 1 To N
      If Abs(DeltaX(I)) > Toler(I) Then
        bStop2 = bFalse
        Exit For
      End If
    Next I

  Loop Until (bStop = bTrue) OR (bStop2 = bTrue)


  If InnerLoopIter > MaxIter Then Exit Do
  If Alpha >= ALPHA_MAX Then Exit Do

Loop Until bStop2 = bTrue

CALL MyFx(X, N, F2)
PRINT "**********FINAL RESULTS************"
PRINT "Optimum at:"
For I = 1 To N
  PRINT "X(";I;")=";X(I)
Next I
For I = 1 To N
  PRINT "Delta X(";I;")=";DeltaX(I)
Next I
PRINT "Function value ="; F2
PRINT "Number of iterations = ";Iter

END
