The following program uses the basic Newton's method to find the minimum of a function .

The program prompts you to enter for each variable (i.e. dimension):

1. The maximum number of iterations.

2. The initial guesses for the optimum point for each variable.

3. The tolerance values for each variable.

The program displays intermediate values for the function and the variables. The program displays the following final results:

1. The coordinates of the minimum point.

2. The minimum function value.

3. The number of iterations

The current code finds the minimum for the following function:

f(x1,x2) = x1 - x2 + 2 * x1 ^ 2 + 2 * x1 * x2 + x2 ^ 2

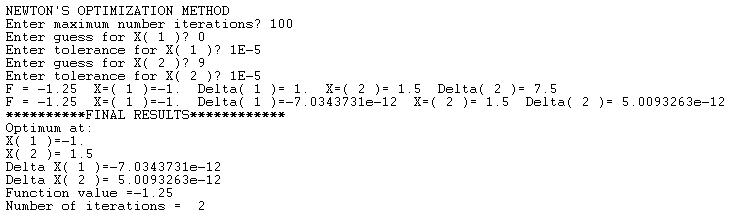

Here is a sample session to solve for the optimum of the above function:

Here is the BASIC listing:

! Basic Newton's Method for Optimization OPTION TYPO OPTION NOLET DECLARE NUMERIC MAX_VARS DECLARE NUMERIC N, I, F DECLARE NUMERIC EPSF, fNorm DECLARE NUMERIC Iter, MaxIter DECLARE NUMERIC bStop, bTrue, bFalse Dim X(1), g(1,1) Dim Toler(1) Dim DeltaX(1), J(1, 1) Dim Index(1) MAX_VARS = 2 bTrue = 1 bFalse = 0 SUB MyFx(X(), N, Res) ! Res = 100 * (X(1) ^ 2 - X(2)) ^ 2 + (1 - X(1)) ^ 2 Res = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2 END SUB SUB FirstDeriv(N, X(), iVar, funRes) LOCAL Xt, h, Fp, Fm Xt = X(iVar) h = 0.01 * (1 + Abs(Xt)) X(iVar) = Xt + h CALL MyFx(X, N, Fp) X(iVar) = Xt - h CALL MyFx(X, N, Fm) X(iVar) = Xt funRes = (Fp - Fm) / 2 / h END SUB SUB SecondDeriv(N, X(), iVar, jVar, funRes) LOCAL Xt, Yt,HX, HY,F0, Fp, Fm LOCAL Fpp, Fmm, Fpm, Fmp ! calculate second derivative? If iVar = jVar Then CALL MyFx(X, N, F0) Xt = X(iVar) HX = 0.01 * (1 + Abs(Xt)) X(iVar) = Xt + HX CALL MyFx(X, N, Fp) X(iVar) = Xt - HX CALL MyFx(X, N, Fm) X(iVar) = Xt funRes = (Fp - 2 * F0 + Fm) / HX ^ 2 Else Xt = X(iVar) Yt = X(jVar) HX = 0.01 * (1 + Abs(Xt)) HY = 0.01 * (1 + Abs(Yt)) ! calculate Fpp X(iVar) = Xt + HX X(jVar) = Yt + HY CALL MyFx(X, N, Fpp) ! calculate Fmm X(iVar) = Xt - HX X(jVar) = Yt - HY CALL MyFx(X, N, Fmm) ! calculate Fpm X(iVar) = Xt + HX X(jVar) = Yt - HY CALL MyFx(X, N, Fpm) ! calculate Fmp X(iVar) = Xt - HX X(jVar) = Yt + HY CALL MyFx(X, N, Fmp) X(iVar) = Xt X(jVar) = Yt funRes = (Fpp - Fmp - Fpm + Fmm) / (4 * HX * HY) End If END SUB SUB GetFirstDerives(N, X(), FirstDerivX(,)) LOCAL I For I = 1 To N CALL FirstDeriv(N, X, I, FirstDerivX(I,1)) Next I END SUB SUB GetSecondDerives(N, X(), SecondDerivX(,)) LOCAL I, J For I = 1 To N For J = 1 To N CALL SecondDeriv(N, X, I, J, SecondDerivX(I, J)) Next J Next I END SUB ! Basic Newton's Method for Optimization N = MAX_VARS MAT REDIM X(N), g(N,1) MAT REDIM Toler(N) MAT REDIM DeltaX(N), J(N, N) MAT REDIM Index(N) PRINT "NEWTON'S OPTIMIZATION METHOD" ! INPUT PROMPT "Enter function tolerance value? ": epsf INPUT PROMPT "Enter maximum number iterations? ": MaxIter For I = 1 To N PRINT "Enter guess for X(";I;")"; INPUT X(I) PRINT "Enter tolerance for X(";I;")"; INPUT Toler(I) Next I Iter = 0 Do Iter = Iter + 1 If Iter > MaxIter Then PRINT "Reached maximum iterations limit" Exit Do End If CALL GetFirstDerives(N, X, g) ! test if gradient is shallow enough fNorm = 0 For I = 1 To N fNorm = fNorm + g(I,1)^2 Next I fNorm = Sqr(fNorm) ! If fNorm < EPSF Then Exit Do CALL GetSecondDerives(N, X, J) MAT J = INV(J) MAT g = J * g For I = 1 To N DeltaX(I) = g(I,1) X(I) = X(I) - DeltaX(I) Next I bStop = bTrue For I = 1 To N If Abs(DeltaX(I)) > Toler(I) Then bStop = bFalse Exit For End If Next I CALL MyFx(X, N, F) PRINT "F = ";F;" "; For I = 1 To N PRINT "X=(";I;")=";X(I);" Delta(";I;")=";DeltaX(I);" "; Next I PRINT Loop Until bStop = bTrue CALL MyFx(X, N, F) PRINT "**********FINAL RESULTS************" PRINT "Optimum at:" For I = 1 To N PRINT "X(";I;")=";X(I) Next I For I = 1 To N PRINT "Delta X(";I;")=";DeltaX(I) Next I PRINT "Function value ="; F PRINT "Number of iterations = ";Iter END
