VB.Net Program to Find The Best Multiple Regression

For Two Variables

by Namir Shammas

The following program calculates the the best model and statistical coefficients for the following model:

H(Y) = A + B F(X) + C G(X)

Where X is the independent variable and Y is the dependent variable. In addition, H(), F(), and G() are transformation functions for the regression variables. The program also calculates the coefficient of determination R-Square.

The program performs different transformations on all the variables. These transformations include:

• Linear (No transformation)
• Logarithmic
• Square root
• Cube root
• Reciprocal
• Square
• Cube
• Reciprocal of square root
• Reciprocal of the square
• Reciprocal of the square root
• Reciprocal of the cube root

The program attempts to fit a a large combination of different curves. For data that have only positive values, the program succeeds in calculating all different models. The presence of negative values and zeros will reduce the number of models tested. The application skips certain transformations for an entire data set if ANY value is zero and/or negative. The bypass prevents run-time errors. Skipping a transformation for an entire data set makes the models easier to compare since they all are based on the same number of observations.

Click here to download a ZIP file containing the project files for this program.

The Application Form

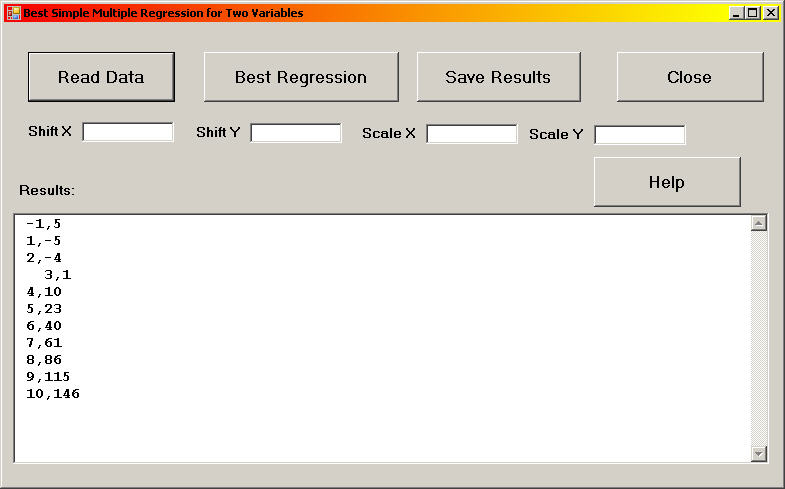

The program is a Windows application that has the following interface:

The above interface has the following controls:

1. The Read Data button invokes an Open File dialog box and allows you to select the file containing the data. Once you select a text-based data file, the application displays the contents in the Results text box.
2. The Best Regression button performs the task of searching for the best fit. The program displays the results in the Results text box. These results consist of the source filename, the current date/time stamp, the number of observations used, and a sorted list of regression statistics. Each list member consists of the coefficient of determination, model equation, slope, and intercept. The program sorts the list in descending order based on the values of the coefficient of determination. Thus, the application displays the best fits first and the worst fits last. In case of input or calculation errors, the application displays and error message box.
3. The Save Results button allows you to save the contents of the Results text box to a file. You can also use this button to save the source data to a different file, possible after editing that data.
4. The Close button closes the application after prompting you for a confirmation.
5. The Help button offers a message box containing a modest help text. The message box prompts you if you want to see sample data in the Results text box.
6. The text boxes labeled ShiftX and ShiftY allow you to optionally specify shift values for the X and Y data, respectively. Left blank, the application uses the default value of 0.
7. The text boxes labeled ScaleX and ScaleY allow you to optionally specify scale values for the X and Y data, respectively. Left blank, the application uses the default value of 1.
8. The Results multi-line text box serves the following three purposes:
   1. The display of the source data and allowing you to edit that data. If you edit the data and then click the Best Regression button, the program asks you if you want to save the data in the source file, before proceeding with the calculations. If you click Yes, the program updates the data file and proceeds with the calculations. If you click No, the program proceeds with the calculations using the original data in the source file.
   2. The display of the results of the regression calculations.
   3. The display of sample data created by the application's help.

The Data File

The application reads data from text files. Each line in the source  text file may be one of the following:

• A blank line. The application ignore blank line
• A comment line. This kind of line starts with text or any character that does not make up a digit.
• An observation made up of a pair of X and then Y numbers separated by a comma. The application allows for leading spaces. You can also include values for weights. By default, the program uses weight values of 1. You can override the weight of a specific observation by including the weight value after the value of Y. You must separate the values of Y and the weight by a comma. You need not specify the weight value of 1, since the program it is the default value.

Here is an example of a data file:

Sample Data file
Created 1/31/2006
General format for a data line is (the Weight value is optional):
X,Y[,Weight]
Next we have X = 100 and Y = 212
100,212
Notice leading spaces on next line
     10,50
The next line has a commented observation
! 33,45
25,77
Next data line has a weight value of 2 (X = 30, Y = 86, and weight = 2)
30,86,2

The application allows for flexible commenting throughout the text file and is able to extract the data. You can  add leading characters like !, #, or % as the first character of a comment line. This option may make it easier for the human eye to spot comment lines. It may also make it easier for a separate utility program to strip the comment lines.

One reason clicking the Read Data button displays the data is to allow you to double check the integrity of the data. If a data line has only one value, then the application generates flags an error. If a data line has more than 3 values, the program ignores the extra values and does not raise an error.

Scaling and Shifting Values

The application shifts and scales data using the following formulas:

X' = ScaleX * (X - ShiftX)

Y' = ScaleY * (Y - ShiftY)

Keep the above equations in mind when you assign values for the shift and/or scale factors.

Offending Values?

Some of the mathematical transformations used take arguments that are only positive or only non-negative. In case you source data contains zeros and/or negative values, the application will avoid applying certain mathematical transformation to avoid causing run-time errors. Keep in mind that the program applies such avoidance to the entire data set and not just to those specific values that can cause error. You will notice the difference in the number of models display depending on your source data range. When using all-positive observations, the applications applies the entire set of transformations. When you have zeros or negative values, the application applies fewer transformations.

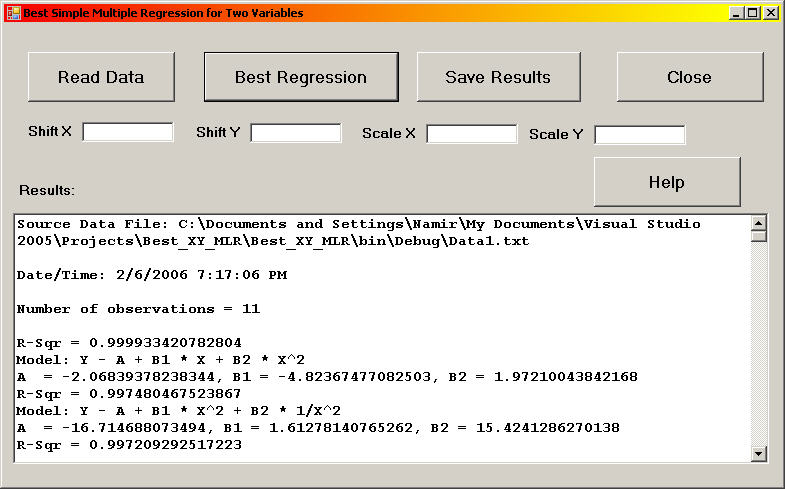

Here is a sample output:

The above output shows the first few best regression models. Here is the simple help message box:

The project file contains the following modules and classes of interest:

• The main form class (Form1). This class manages the GUI interface.
• The TypeModule module that stores public data types.
• The CStatSum class. The class supports the data file input and statistical calculations
• The CResults class. This class manages storing and sorting the results.
• The CErrors class. This class manages errors.

Here is the listing for class Form1:

Imports System.IO

Public Class Form1
  Private sDataFilename As String
  Private bEditMode As Boolean
  Private bTextHasChanged As Boolean

  Private Sub cmdCalc_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmdCalc.Click
    Dim objLR As CStatSum
    Dim objRes As CResults
    Dim I, nDataCOunt As Integer
    Dim fShiftX, fShiftY, fScaleX, fScaleY As Double
    Dim sBuffer As String

    If sDataFilename = "" Then
      MessageBox.Show("Please select a data file first", "Error", MessageBoxButtons.OK, MessageBoxIcon.Hand)
      Exit Sub
    End If
    objLR = New CStatSum
    objRes = New CResults

    If bTextHasChanged Then
      If MessageBox.Show("Save changed data?", "Confirmation", MessageBoxButtons.YesNo, MessageBoxIcon.Question) = Windows.Forms.DialogResult.Yes Then
        File.WriteAllText(sDataFilename, txtRes.Text)
      End If
      bTextHasChanged = False
    End If
    bEditMode = False

    ' check the Shift X text box
    If txtShiftX.Text.Length > 0 Then
      fShiftX = Double.Parse(txtShiftX.Text)
    Else
      fShiftX = 0
    End If

    ' check the Shift Y text box
    If txtShiftY.Text.Length > 0 Then
      fShiftY = Double.Parse(txtShiftY.Text)
    Else
      fShiftY = 0
    End If

    ' check the Scale X text box
    If txtScaleX.Text.Length > 0 Then
      fScaleX = Double.Parse(txtScaleX.Text)
      If fScaleX = 0 Then fScaleX = 1
    Else
      fScaleX = 1
    End If

    ' check the Scale Y text box
    If txtScaleY.Text.Length > 0 Then
      fScaleY = Double.Parse(txtScaleY.Text)
      If fScaleY = 0 Then fScaleY = 1
    Else
      fScaleY = 1
    End If

    If objLR.GetData(sDataFilename, nDataCOunt, fShiftX, fShiftY, fScaleX, fScaleY) Then
      Cursor = Cursors.WaitCursor
      objLR.FindBestFit(objRes)
      objRes.SortResults()
      sBuffer = "Source Data File: " & sDataFilename & vbCrLf & vbCrLf
      sBuffer = sBuffer & "Date/Time: " & Now() & vbCrLf & vbCrLf
      sBuffer = sBuffer & "Number of observations = " & nDataCOunt & vbCrLf & vbCrLf
      If fScaleX <> 1 Then sBuffer = sBuffer & "Scale X = " & fScaleX & vbCrLf
      If fShiftX <> 0 Then sBuffer = sBuffer & "Shift X = " & fShiftX & vbCrLf
      If fScaleY <> 1 Then sBuffer = sBuffer & "Scale Y = " & fScaleY & vbCrLf
      If fShiftY <> 0 Then sBuffer = sBuffer & "Shift Y = " & fShiftY & vbCrLf & vbCrLf
      For I = 0 To objRes.Count - 1
        sBuffer = sBuffer & "R-Sqr = " & objRes.GetR2(I).ToString & vbCrLf
        sBuffer = sBuffer & "Model: " & objRes.GetModel(I) & vbCrLf
        sBuffer = sBuffer & "A  = " & objRes.GetIntercept(I).ToString & _
                      ", B1 = " & objRes.GetSlope1(I).ToString & _
                      ", B2 = " & objRes.GetSlope2(I).ToString & vbCrLf
      Next
      txtRes.Text = sBuffer
      sBuffer = ""
      Cursor = Cursors.Default
      cmdSaveRes.Enabled = True
    Else
      MessageBox.Show("Error in processing data", "Error", MessageBoxButtons.OK, MessageBoxIcon.Error)
    End If


  End Sub

  Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
    sDataFilename = ""
    cmdCalc.Enabled = False
    cmdSaveRes.Enabled = False
    bEditMode = False
  End Sub

  Private Sub cmdReadData_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmdReadData.Click
    dlgReadData.Filter = "All files (*.*)|*.*|Text files|*.txt|Data files (*.dat)|*.dat"
    If dlgReadData.ShowDialog = Windows.Forms.DialogResult.OK Then
      sDataFilename = dlgReadData.FileName
      txtRes.Text = File.ReadAllText(sDataFilename)
      cmdCalc.Enabled = True
      cmdSaveRes.Enabled = True
      bTextHasChanged = False
      bEditMode = True
    End If
  End Sub

  Private Sub cmdSaveRes_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmdSaveRes.Click
    dlgSaveRes.Filter = "All files (*.*)|*.*|Text files|*.txt|Data files (*.dat)|*.dat"
    If dlgSaveRes.ShowDialog = Windows.Forms.DialogResult.OK Then
      File.WriteAllText(dlgSaveRes.FileName, txtRes.Text)
      bTextHasChanged = False
    End If
  End Sub

  Private Sub cmdClose_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmdClose.Click
    If MessageBox.Show("Close application?", "Confirmation", MessageBoxButtons.YesNo, MessageBoxIcon.Question) = Windows.Forms.DialogResult.Yes Then
      Close()
    End If
  End Sub

  Private Sub txtRes_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles txtRes.TextChanged
    If bEditMode Then bTextHasChanged = True
  End Sub

  Private Sub cmdHelp_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmdHelp.Click
    Dim sText As String
    Dim I As Integer

    sText = "Each line can be 1) empty, 2) a comment line or 3) a data line" & vbCrLf & _
            "A data line has a pair of y and x values separated by a comma" & vbCrLf & _
            "A data line can have a weight value that is appended after x and is separated by a comma" & vbCrLf & _
            "Weights are optional and need to appear when their values are not 1" & vbCrLf & _
            "A comment line must NOT start with any of the chatacters +-.0123456789" & vbCrLf & _
            "Show an example?"
    If MessageBox.Show(sText, "Help", MessageBoxButtons.YesNo, MessageBoxIcon.Information) = Windows.Forms.DialogResult.Yes Then
      bEditMode = False
      sText = "Sample data (example of free form comment line)" & vbCrLf & _
              "45,32" & vbCrLf & _
              "67,34" & vbCrLf & _
              "Next line is an observation that is temporaryly commente dout" & vbCrLf & _
              "! 56,23" & vbCrLf
      For I = 1 To 10
        sText = sText & Int(200 * Rnd(1)) & "," & Int(200 * Rnd(1)) & vbCrLf
      Next
      txtRes.Text = sText
    End If

  End Sub
End Class

Module TypeModule
  Public Enum FitType
    eLinear
    eSquare
    eCube
    eCubeRoot
    eRecip
    eRecipCubeRoot
    eRecipSquare
    eRecipCube
    eSqrt
    eRecipSqrt
    eLn
  End Enum

  Public Structure ResType
    Public m_sModel As String
    Public m_fR2 As Double
    Public m_fSlope1 As Double
    Public m_fSlope2 As Double
    Public m_fIntercept As Double
    Public m_sErr As String
  End Structure
End Module

Here is the listing for class CErrors:

Public Class CErrors
  Private m_sErrors() As String
  Private m_nNumErrs As Integer

  Public Sub New()
    Clear()
  End Sub

  Public Sub Add(ByVal sErr As String)
    ReDim Preserve m_sErrors(m_nNumErrs + 1)
    m_sErrors(m_nNumErrs) = sErr
    m_nNumErrs = m_nNumErrs + 1
  End Sub

  Public Function GetCount() As Integer
    Return m_nNumErrs
  End Function

  Public Function GetErrText(ByVal nIndex As Integer) As String
    Dim sErrText As String = "Out of Bound Index"
    Try
      sErrText = m_sErrors(nIndex)
    Catch
    End Try
    Return sErrText
  End Function

  Public Sub Clear()
    m_nNumErrs = 0
    ReDim m_sErrors(1)
  End Sub
End Class

Here is the listing for class CResults::

Public Class CResults
  Private m_nResCount As Integer
  Private m_uResRec() As TypeModule.ResType

  Public Sub New()
    m_nResCount = 0
  End Sub

  Public Sub Add(ByVal sModel As String, ByVal fR2 As Double, ByVal fSlope1 As Double, ByVal fSlope2 As Double, ByVal fIntercept As Double, ByVal sErr As String)
    ReDim Preserve m_uResRec(m_nResCount + 1)

    m_uResRec(m_nResCount).m_sModel = sModel
    m_uResRec(m_nResCount).m_fR2 = fR2
    m_uResRec(m_nResCount).m_fSlope1 = fSlope1
    m_uResRec(m_nResCount).m_fSlope2 = fSlope2
    m_uResRec(m_nResCount).m_fIntercept = fIntercept
    m_uResRec(m_nResCount).m_sErr = sErr
    m_nResCount = m_nResCount + 1
  End Sub

  Public Sub Clear()
    m_nResCount = 0
  End Sub

  Public Function Count() As Integer
    Return m_nResCount
  End Function

  Public Function GetModel(ByVal nIndex As Integer) As String
    Return IIf(nIndex > -1 And nIndex < m_nResCount, m_uResRec(nIndex).m_sModel, "")
  End Function

  Public Function GetR2(ByVal nIndex As Integer) As Double
    Return IIf(nIndex > -1 And nIndex < m_nResCount, m_uResRec(nIndex).m_fR2, -1)
  End Function

  Public Function GetSlope1(ByVal nIndex As Integer) As Double
    Return IIf(nIndex > -1 And nIndex < m_nResCount, m_uResRec(nIndex).m_fSlope1, -1.0E+30)
  End Function

  Public Function GetSlope2(ByVal nIndex As Integer) As Double
    Return IIf(nIndex > -1 And nIndex < m_nResCount, m_uResRec(nIndex).m_fSlope2, -1.0E+30)
  End Function

  Public Function GetIntercept(ByVal nIndex As Integer) As Double
    Return IIf(nIndex > -1 And nIndex < m_nResCount, m_uResRec(nIndex).m_fIntercept, -1.0E+30)
  End Function

  Public Function GetErr(ByVal nIndex As Integer) As String
    Return IIf(nIndex > -1 And nIndex < m_nResCount, m_uResRec(nIndex).m_sErr, "")
  End Function

  Public Sub SortResults()
    Dim bInorder As Boolean
    Dim I, J, N, nOffset, nResetCounter As Integer
    Dim uBuffer As TypeModule.ResType

    N = m_nResCount
    nOffset = N
    nResetCounter = 0
    Do
      nOffset = (5 * nOffset) / 11
      If nOffset = 0 Then nOffset = 1
      bInorder = True
      For I = 0 To N - nOffset - 1
        J = I + nOffset
        If m_uResRec(I).m_fR2 < m_uResRec(J).m_fR2 Then
          uBuffer = m_uResRec(I)
          m_uResRec(I) = m_uResRec(J)
          m_uResRec(J) = uBuffer
          bInorder = False
        End If
      Next
      If bInorder Then nResetCounter += 1
      If (Not bInorder) And (nOffset = 1) Then
        nOffset = N
        For I = 1 To nResetCounter
          nOffset = (5 * nOffset) / 11
        Next
        If nOffset = 0 Then nOffset = 1
      End If
    Loop Until nOffset = 1 And bInorder
  End Sub
End Class

Here is the listing for class CStatSum:

Imports System.IO

Public Class CStatSum
  Private Const EPSILON = 1.0E-50
  Private Const DIGIT_MARKERS = "-+0123456789."

  Private m_bZeroX As Boolean
  Private m_bZeroY As Boolean
  Private m_bNegX As Boolean
  Private m_bNegY As Boolean

  Private m_fSum As Double
  Private m_fSumX11 As Double
  Private m_fSumX21 As Double
  Private m_fSumX22 As Double
  Private m_fSumX12 As Double
  Private m_fSumY As Double
  Private m_fSumY2 As Double
  Private m_fSumX1Y As Double
  Private m_fSumX2Y As Double
  Private m_fSumX1X2 As Double
  Private m_fMeanX1 As Double
  Private m_fMeanX2 As Double
  Private m_fMeanY As Double
  Private m_fSdevX1 As Double
  Private m_fSdevX2 As Double
  Private m_fSdevY As Double
  Private m_fSlope1 As Double
  Private m_fSlope2 As Double
  Private m_fIntercept As Double
  Private m_fR2 As Double
  Private m_sTX1 As String
  Private m_sTX2 As String
  Private m_sTY As String
  Private m_sWt As String

  Private m_nDataCount As Integer
  Private m_fX() As Double
  Private m_fY() As Double
  Private m_fWt() As Double


  Public Sub InitSums()
    m_fSum = 0
    m_fSumX11 = 0
    m_fSumX12 = 0
    m_fSumX21 = 0
    m_fSumX22 = 0
    m_fSumY = 0
    m_fSumY2 = 0
    m_fSumX1Y = 0
    m_fSumX2Y = 0
    m_fSumX1X2 = 0
    m_sTX1 = ""
    m_sTX2 = ""
    m_sTY = ""
    m_sWt = ""
  End Sub

  Public Sub New()
    InitSums()
  End Sub

  Public Function GetData(ByVal sDataFilename As String, ByRef nDataCOunt As Integer, _
     Optional ByVal ShiftX As Double = 0, Optional ByVal ShiftY As Double = 0, _
     Optional ByVal ScaleX As Double = 1, Optional ByVal ScaleY As Double = 1) As Boolean

    Dim sLine, sLines() As String
    Dim sData() As String
    Dim I, J, K, N As Integer
    Dim bRes As Boolean = True

    Try
      sLines = File.ReadAllLines(sDataFilename)

      nDataCOunt = sLines.GetUpperBound(0)

      ' Dimension arrays for maximum capacity
      ReDim m_fX(nDataCOunt)
      ReDim m_fY(nDataCOunt)
      ReDim m_fWt(nDataCOunt)

      J = 0
      m_nDataCount = 0
      Do Until J = sLines.Length
        sLine = sLines(J).Trim()
        ' is line not empty?
        If sLine.Length > 0 Then
          ' is it NOT a comment?
          If DIGIT_MARKERS.IndexOf(sLine.Substring(0, 1)) >= 0 Then
            sData = sLine.Split(",")
            N = sData.GetUpperBound(0)
            m_fX(m_nDataCount) = Double.Parse(sData(0))
            m_fY(m_nDataCount) = Double.Parse(sData(1))
            If N < 2 Then
              m_fWt(m_nDataCount) = 1
            Else
              m_fWt(m_nDataCount) = Double.Parse(sData(2))
            End If
            m_nDataCount += 1
          End If
        End If
        J += 1
      Loop

      ' adjust arrays to actual number of data
      ReDim Preserve m_fX(m_nDataCount)
      ReDim Preserve m_fY(m_nDataCount)
      ReDim Preserve m_fWt(m_nDataCount)
      nDataCOunt = m_nDataCount

      For I = 0 To m_nDataCount - 1
        m_fX(I) = ScaleX * (m_fX(I) - ShiftX)
        m_fY(I) = ScaleY * (m_fY(I) - ShiftY)
      Next I

    Catch ex As Exception
      bRes = False
    End Try

    Return bRes

  End Function

  Private Sub Add(ByVal X1 As Double, ByVal X2 As Double, ByVal Y As Double, Optional ByVal Wt As Double = 1)
    m_fSum = m_fSum + Wt
    m_fSumX11 = m_fSumX11 + X1 * Wt
    m_fSumX21 = m_fSumX21 + X2 * Wt
    m_fSumX12 = m_fSumX12 + X1 * X1 * Wt
    m_fSumX22 = m_fSumX22 + X2 * X2 * Wt
    m_fSumY = m_fSumY + Y * Wt
    m_fSumY2 = m_fSumY2 + Y * Y * Wt
    m_fSumX1Y = m_fSumX1Y + X1 * Y * Wt
    m_fSumX2Y = m_fSumX2Y + X2 * Y * Wt
    m_fSumX1X2 = m_fSumX1X2 + X1 * X2 * Wt
  End Sub

  Public Sub FindBestFit(ByRef objRes As CResults)
    Dim I As Integer
    Dim ITX1 As FitType
    Dim ITX2 As FitType
    Dim ITY As FitType
    Dim bOK As Boolean
    Dim fXt1 As Double
    Dim fXt2 As Double
    Dim fYt As Double
    Dim fMinWt As Double
    Dim fMaxWt As Double
    Dim fMeanWt As Double
    Dim fSdevWt As Double
    Dim objErrs As CErrors
    Dim sModel As String
    Dim sErr As String

    objErrs = New CErrors
    Try
      m_bZeroX = False
      m_bZeroY = False
      m_bNegX = False
      m_bNegY = False

      objRes.Clear()

      For I = 0 To m_nDataCount - 1
        If m_fX(I) < 0 Then m_bNegX = True
        If m_fY(I) < 0 Then m_bNegY = True
        If Math.Abs(m_fX(I)) < EPSILON Then m_bZeroX = True
        If Math.Abs(m_fY(I)) < EPSILON Then m_bZeroY = True
      Next I

      For ITY = TypeModule.FitType.eLinear To TypeModule.FitType.eLn
        ' validate transformations
        If m_bZeroY And m_bNegY Then
          bOK = CanHandleZeroAndNegative(ITY)
        ElseIf m_bZeroY Then
          bOK = CanHandleZero(ITY)
        ElseIf m_bNegY Then
          bOK = CanHandleNegative(ITY)
        Else
          bOK = True
        End If

        ' Can proceed?
        If bOK Then

          For ITX1 = TypeModule.FitType.eLinear To TypeModule.FitType.eLn

            ' validate transformations
            If m_bZeroX And m_bNegX Then
              bOK = CanHandleZeroAndNegative(ITX1)
            ElseIf m_bZeroX Then
              bOK = CanHandleZero(ITX1)
            ElseIf m_bNegX Then
              bOK = CanHandleNegative(ITX1)
            Else
              bOK = True
            End If

            ' Can proceed?
            If bOK Then

              For ITX2 = ITX1 To TypeModule.FitType.eLn

                ' validate transformations
                If m_bZeroX And m_bNegX Then
                  bOK = CanHandleZeroAndNegative(ITX2)
                ElseIf m_bZeroX Then
                  bOK = CanHandleZero(ITX2)
                ElseIf m_bNegX Then
                  bOK = CanHandleNegative(ITX2)
                Else
                  bOK = True
                End If

                ' lastly check if two transformations are the same
                If ITX1 = ITX2 Then bOK = False

                If bOK Then

                  ' initialize summations
                  InitSums()

                  For I = 0 To m_nDataCount - 1


                    Select Case ITX1
                      Case TypeModule.FitType.eLinear
                        fXt1 = m_fX(I)
                      Case TypeModule.FitType.eSquare
                        fXt1 = m_fX(I) ^ 2
                      Case TypeModule.FitType.eCube
                        fXt1 = m_fX(I) ^ 3
                      Case TypeModule.FitType.eCubeRoot
                        fXt1 = m_fX(I) ^ (1 / 3)
                      Case TypeModule.FitType.eRecip
                        fXt1 = 1 / m_fX(I)
                      Case TypeModule.FitType.eRecipCubeRoot
                        fXt1 = 1 / m_fX(I) ^ (1 / 3)
                      Case TypeModule.FitType.eRecipSquare
                        fXt1 = 1 / m_fX(I) ^ 2
                      Case TypeModule.FitType.eRecipCube
                        fXt1 = 1 / m_fX(I) ^ 3
                      Case TypeModule.FitType.eSqrt
                        fXt1 = Math.Sqrt(m_fX(I))
                      Case TypeModule.FitType.eRecipSqrt
                        fXt1 = 1 / Math.Sqrt(m_fX(I))
                      Case TypeModule.FitType.eLn
                        fXt1 = Math.Log(m_fX(I))
                    End Select

                    Select Case ITX2
                      Case TypeModule.FitType.eLinear
                        fXt2 = m_fX(I)
                      Case TypeModule.FitType.eSquare
                        fXt2 = m_fX(I) ^ 2
                      Case TypeModule.FitType.eCube
                        fXt2 = m_fX(I) ^ 3
                      Case TypeModule.FitType.eCubeRoot
                        fXt2 = m_fX(I) ^ (1 / 3)
                      Case TypeModule.FitType.eRecip
                        fXt2 = 1 / m_fX(I)
                      Case TypeModule.FitType.eRecipCubeRoot
                        fXt2 = 1 / m_fX(I) ^ (1 / 3)
                      Case TypeModule.FitType.eRecipSquare
                        fXt2 = 1 / m_fX(I) ^ 2
                      Case TypeModule.FitType.eRecipCube
                        fXt2 = 1 / m_fX(I) ^ 3
                      Case TypeModule.FitType.eSqrt
                        fXt2 = Math.Sqrt(m_fX(I))
                      Case TypeModule.FitType.eRecipSqrt
                        fXt2 = 1 / Math.Sqrt(m_fX(I))
                      Case TypeModule.FitType.eLn
                        fXt2 = Math.Log(m_fX(I))
                    End Select


                    Select Case ITY
                      Case TypeModule.FitType.eLinear
                        fYt = m_fY(I)
                      Case TypeModule.FitType.eSquare
                        fYt = m_fY(I) ^ 2
                      Case TypeModule.FitType.eCube
                        fYt = m_fY(I) ^ 3
                      Case TypeModule.FitType.eCubeRoot
                        fYt = m_fY(I) ^ (1 / 3)
                      Case TypeModule.FitType.eRecip
                        fYt = 1 / m_fY(I)
                      Case TypeModule.FitType.eRecipCubeRoot
                        fYt = 1 / m_fY(I) ^ (1 / 3)
                      Case TypeModule.FitType.eRecipSquare
                        fYt = 1 / m_fY(I) ^ 2
                      Case TypeModule.FitType.eRecipCube
                        fYt = 1 / m_fY(I) ^ 3
                      Case TypeModule.FitType.eSqrt
                        fYt = Math.Sqrt(m_fY(I))
                      Case TypeModule.FitType.eRecipSqrt
                        fYt = 1 / Math.Sqrt(m_fY(I))
                      Case TypeModule.FitType.eLn
                        fYt = Math.Log(m_fY(I))
                    End Select

                    ' add transformed data to statistical summations
                    Add(fXt1, fXt2, fYt, m_fWt(I))

                  Next I

                  ' store transformation data
                  m_sTX1 = SayTransform(ITX1)
                  m_sTX2 = SayTransform(ITX2)
                  m_sTY = SayTransform(ITY, "Y")
                  sModel = m_sTY & " - A + B1 * " & m_sTX1 & " + B2 * " & m_sTX2
                  ' calculate regression statistics and store in
                  ' object accessed by m_objRes
                  CalcLR(objRes, objErrs)

                  If objErrs.GetCount > 0 Then
                    sErr = objErrs.GetErrText(0)
                  Else
                    sErr = ""
                  End If
                  objErrs.Clear() ' reset error object

                  objRes.Add(sModel, m_fR2, m_fSlope1, m_fSlope2, m_fIntercept, sErr)

                Else
                  m_sTX1 = SayTransform(ITX1)
                  m_sTX2 = SayTransform(ITX2)
                  m_sTY = SayTransform(ITY, "Y")
                  sModel = m_sTY & " - A + B1 * " & m_sTX1 & " + B2 * " & m_sTX2
                  ' objRes.Add(sModel, -1, 0, 0, 0, 0)

                End If

              Next ITX2

            End If

          Next ITX1

        End If
      Next ITY


    Catch ex As Exception
      objErrs.Add(ex.Message)
    End Try

  End Sub

  Private Function SayTransform(ByVal eVal As FitType, Optional ByVal sVar As String = "X") As String
    Select Case eVal
      Case TypeModule.FitType.eLinear
        Return sVar
      Case TypeModule.FitType.eSquare
        Return sVar & "^2"
      Case TypeModule.FitType.eCube
        Return sVar & "^3"
      Case TypeModule.FitType.eCubeRoot
        Return sVar & "^1/3"
      Case TypeModule.FitType.eRecip
        Return "1/" & sVar
      Case TypeModule.FitType.eRecipCubeRoot
        Return "1/" & sVar & "^1/3"
      Case TypeModule.FitType.eRecipSquare
        Return "1/" & sVar & "^2"
      Case TypeModule.FitType.eRecipCube
        Return "1/" & sVar & "^3"
      Case TypeModule.FitType.eSqrt
        Return sVar & "^1/2"
      Case TypeModule.FitType.eRecipSqrt
        Return "1/" & sVar & "^1/2"
      Case TypeModule.FitType.eLn
        Return "Ln(" & sVar & ")"
    End Select
  End Function

  Private Function CanHandleZero(ByVal eVal As FitType) As Boolean

    Select Case eVal
      Case TypeModule.FitType.eLinear, TypeModule.FitType.eSquare, TypeModule.FitType.eCube, _
         TypeModule.FitType.eCubeRoot, TypeModule.FitType.eSqrt
        Return True
      Case Else
        Return False
    End Select
  End Function

  Private Function CanHandleZeroAndNegative(ByVal eVal As FitType) As Boolean

    Select Case eVal
      Case TypeModule.FitType.eLinear, TypeModule.FitType.eSquare, TypeModule.FitType.eCube
        Return True
      Case Else
        Return False
    End Select
  End Function

  Private Function CanHandleNegative(ByVal eVal As FitType) As Boolean

    Select Case eVal
      Case TypeModule.FitType.eLinear, TypeModule.FitType.eSquare, TypeModule.FitType.eCube, _
           TypeModule.FitType.eRecip, TypeModule.FitType.eRecipSquare, TypeModule.FitType.eRecipCube
        Return True
      Case Else
        Return False
    End Select
  End Function


  Private Sub CalcLR(ByRef objRes As CResults, ByRef objErrs As CErrors)
    Dim A As Double
    Dim B As Double

    If m_fSum < 2 Then Exit Sub
    ' caluclate regression
    Try
      m_fMeanX1 = m_fSumX11 / m_fSum
      m_fMeanX2 = m_fSumX21 / m_fSum
      m_fMeanY = m_fSumY / m_fSum
      m_fSdevX1 = Math.Sqrt((m_fSumX12 - m_fSumX11 ^ 2 / m_fSum) / (m_fSum - 1))
      m_fSdevX2 = Math.Sqrt((m_fSumX22 - m_fSumX21 ^ 2 / m_fSum) / (m_fSum - 1))
      m_fSdevY = Math.Sqrt((m_fSumY2 - m_fSumY ^ 2 / m_fSum) / (m_fSum - 1))

      A = (m_fSum * m_fSumX12 - m_fSumX11 ^ 2) * _
          (m_fSum * m_fSumX2Y - m_fSumX21 * m_fSumY)
      B = (m_fSum * m_fSumX1X2 - m_fSumX11 * m_fSumX21) * _
          (m_fSum * m_fSumX1Y - m_fSumX11 * m_fSumY)

      m_fSlope2 = (A - B) / _
         ((m_fSum * m_fSumX12 - m_fSumX11 ^ 2) * _
         (m_fSum * m_fSumX22 - m_fSumX21 ^ 2) - _
         (m_fSum * m_fSumX1X2 - m_fSumX11 * m_fSumX21) ^ 2)
      m_fSlope1 = ((m_fSum * m_fSumX1Y - m_fSumX11 * m_fSumY) - _
        m_fSlope2 * (m_fSum * m_fSumX1X2 - m_fSumX11 * m_fSumX21)) / _
        (m_fSum * m_fSumX12 - m_fSumX11 ^ 2)
      m_fIntercept = m_fMeanY - m_fSlope1 * m_fMeanX1 - m_fSlope2 * m_fMeanX2
      m_fR2 = (m_fIntercept * m_fSumY + m_fSlope1 * m_fSumX1Y + m_fSlope2 * m_fSumX2Y - m_fSumY ^ 2 / m_fSum) / _
              (m_fSumY2 - m_fSumY ^ 2 / m_fSum)

    Catch ex As Exception
      objErrs.Add("Error in model " & m_sTY = "A0 + A1 " & _
                   m_sTX1 & " + A2 " & m_sTX2 & vbCrLf & ex.Message)
    End Try
  End Sub
End Class
