VB.Net Program to Find a Function Minimum

Using a Random Drift Method

by Namir Shammas

The following program calculates the minimum point of a multi-variable function using random search method. This method starts with an initial point and a search radius for each variable. The algorithm searches for a better optimum point within the search radius. This approach allows the search to drift towards the optimum point without being confined to absolute search ranges.

Click here to download a ZIP file containing the project files for this program.

The program prompts you to either use the predefined default input values or to enter the following:

1. The initial value for each variable:.

2. The search radius for each variable:.

3. The maximum number of iterations per cycle.

4. The function tolerance.

In case you choose the default input values, the program displays these values and proceeds to find the optimum point. In the case you select being prompted, the program displays the name of each input variable along with its default value. You can then either enter a new value or simply press Enter to use the default value. This approach allows you to quickly and efficiently change only a few input values if you so desire.

The program displays the following results:

1. The coordinates of the minimum value.

2. The minimum function value.

3. The number of iterations

Here is a sample session to find the minimum of function:

f(x) = x1 - x2 + 2 * x1 ^ 2 + 2 * x1 * x2 + x2 ^ 2

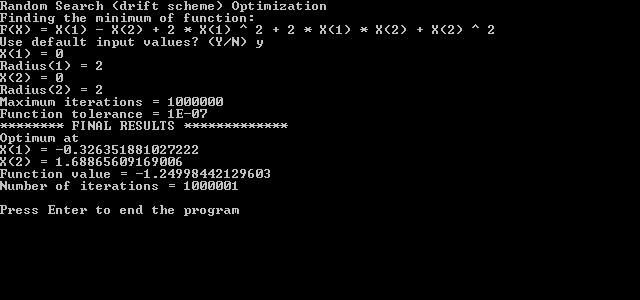

Using the initial value of 0, range of (-5, 5) for each variable, and using a maximum number of 1000000 iterations and a function tolerance of 1e-7. Here is the sample console screen:

Here is the listing showing the main module. The module contains several test functions:

Module Module1

  Sub Main()
    Dim nNumVars As Integer = 2
    Dim fX() As Double = {0, 0}
    Dim fParam() As Double = {0, 0}
    Dim fRadius() As Double = {2, 2}
    Dim fEpsFx As Double = 0.0000001
    Dim nIter As Integer = 0, nMaxIter As Integer = 1000000
    Dim I As Integer
    Dim fBestF As Double
    Dim sAnswer As String
    Dim oOpt As CRandomSearch3
    Dim MyFx As MyFxDelegate = AddressOf Fx3
    Dim SayFx As SayFxDelegate = AddressOf SayFx3

    oOpt = New CRandomSearch3

    Console.WriteLine("Random Search (drift scheme) Optimization")
    Console.WriteLine("Finding the minimum of function:")
    Console.WriteLine(SayFx())
    Console.Write("Use default input values? (Y/N) ")
    sAnswer = Console.ReadLine()
    If sAnswer.ToUpper() = "Y" Then
      For I = 0 To nNumVars - 1
        Console.WriteLine("X({0}) = {1}", I + 1, fX(I))
        Console.WriteLine("Radius({0}) = {1}", I + 1, fRadius(I))
      Next
      Console.WriteLine("Maximum iterations = {0}", nMaxIter)
      Console.WriteLine("Function tolerance = {0}", fEpsFx)
    Else
      For I = 0 To nNumVars - 1
        fX(I) = GetIndexedDblInput("X", I + 1, fX(I))
        fRadius(I) = GetIndexedDblInput("Radius", I + 1, fRadius(I))
      Next
      nMaxIter = GetIntInput("Maximum iterations", nMaxIter)
      Console.Write("Function tolerance? ")
      fEpsFx = GetDblInput("Function tolerance", fEpsFx)
    End If

    Console.WriteLine("******** FINAL RESULTS *************")
    fBestF = oOpt.CalcOptim(nNumVars, fX, fParam, fRadius, nMaxIter, fEpsFx, nIter, MyFx)
    Console.WriteLine("Optimum at")
    For I = 0 To nNumVars - 1
      Console.WriteLine("X({0}) = {1}", I + 1, fX(I))
    Next
    Console.WriteLine("Function value = {0}", fBestF)
    Console.WriteLine("Number of iterations = {0}", nIter)
    Console.WriteLine()
    Console.Write("Press Enter to end the program")
    Console.ReadLine()
  End Sub

  Function GetDblInput(ByVal sPrompt As String, ByVal fDefInput As Double) As Double
    Dim sInput As String

    Console.Write("{0}? ({1}): ", sPrompt, fDefInput)
    sInput = Console.ReadLine()
    If sInput.Trim().Length > 0 Then
      Return Double.Parse(sInput)
    Else
      Return fDefInput
    End If
  End Function

  Function GetIntInput(ByVal sPrompt As String, ByVal nDefInput As Integer) As Integer
    Dim sInput As String

    Console.Write("{0}? ({1}): ", sPrompt, nDefInput)
    sInput = Console.ReadLine()
    If sInput.Trim().Length > 0 Then
      Return Double.Parse(sInput)
    Else
      Return nDefInput
    End If
  End Function

  Function GetIndexedDblInput(ByVal sPrompt As String, ByVal nIndex As Integer, ByVal fDefInput As Double) As Double
    Dim sInput As String

    Console.Write("{0}({1})? ({2}): ", sPrompt, nIndex, fDefInput)
    sInput = Console.ReadLine()
    If sInput.Trim().Length > 0 Then
      Return Double.Parse(sInput)
    Else
      Return fDefInput
    End If
  End Function

  Function SayFx1() As String
    Return "F(X) = 10 + (X(1) - 2) ^ 2 + (X(2) + 5) ^ 2"
  End Function

  Function Fx1(ByVal N As Integer, ByRef X() As Double, ByRef fParam() As Double) As Double
    Return 10 + (X(0) - 2) ^ 2 + (X(1) + 5) ^ 2
  End Function

  Function SayFx2() As String
    Return "F(X) = 100 * (X(1) - X(2) ^ 2) ^ 2 + (X(2) - 1) ^ 2"
  End Function

  Function Fx2(ByVal N As Integer, ByRef X() As Double, ByRef fParam() As Double) As Double
    Return 100 * (X(0) - X(1) ^ 2) ^ 2 + (X(1) - 1) ^ 2
  End Function

  Function SayFx3() As String
    Return "F(X) = X(1) - X(2) + 2 * X(1) ^ 2 + 2 * X(1) * X(2) + X(2) ^ 2"
  End Function

  Function Fx3(ByVal N As Integer, ByRef X() As Double, ByRef fParam() As Double) As Double
    Return X(0) - X(1) + 2 * X(0) ^ 2 + 2 * X(0) * X(1) + X(1) ^ 2
  End Function

End Module

Notice that the user-defined functions have accompanying helper functions to display the mathematical expression of the function being optimized. For example, function Fx1 has the helper function SayFx1 to list the function optimized in Fx1. Please observe the following rules::

When you add new user-defined functions to optimize, you must also add an accompanying helper function that states the function mathematical make up.
When you edit an existing user-defined functions to optimize, you must also edit its accompanying helper function to reflect the changes you make in the function mathematical make up
When you select a new user-defined function you must alter both variables MyFx, and SayFx to specify the new function and its accompanying helper function.

The program uses the following class to optimize the objective function:

Public Delegate Function MyFxDelegate(ByVal nNumVars As Integer, ByRef fX() As Double, ByRef fParam() As Double) As Double
Public Delegate Function SayFxDelegate() As String

Public Class CRandomSearch3

  Public Function CalcOptim(ByVal nNumVars As Integer, ByRef fX() As Double, ByRef fParam() As Double, _
                            ByRef fRadius() As Double, ByVal nMaxIter As Integer, ByVal EpsFx As Double, _
                            ByRef nIter As Integer, ByVal MyFx As MyFxDelegate) As Double

    Dim F, fBestF, fBestX(), fLastBestF As Double
    Dim I As Integer

    ReDim fBestX(nNumVars)

    For I = 0 To nNumVars - 1
      fBestX(I) = fX(I)
    Next
    ' calculate and display function value at initial point
    fBestF = MyFx(nNumVars, fBestX, fParam)
    If fBestF > 0 Then
      fLastBestF = fBestF + 100
    Else
      fLastBestF = 100 - fBestF
    End If

    nIter = 0
    Do
      nIter += 1
      If nIter > nMaxIter Then Exit Do
      Randomize(Timer)
      For I = 0 To nNumVars - 1
        fX(I) = fBestX(I) + (Rnd(1) - 0.5) * fRadius(I)
      Next
      F = MyFx(nNumVars, fX, fParam)
      If F < fBestF Then
        For I = 0 To nNumVars - 1
          fBestX(I) = fX(I)
        Next
        fBestF = F

        ' test function value convergence
        If Math.Abs(fBestF - fLastBestF) < EpsFx Then Exit Do
        fLastBestF = fBestF
      End If
    Loop

    Return fBestF

  End Function
End Class
